Ụgbọ ala okporo ụzọ - Igwe ọkụ eletrik dị ala (wires)

Ogologo ndụ ọrụ

Ngwaahịa niile dị mma na gburugburu ebe obibi

Ihe karịrị afọ 15 nke mmepụta ahụmahụ

Ngụ n'ịntanetị ngwa ngwa

Standard: DIN 72551, ISO 6722

Oke okpomọkụ: 125 degrees

Oke voltaji: AC 25V; DC 60V

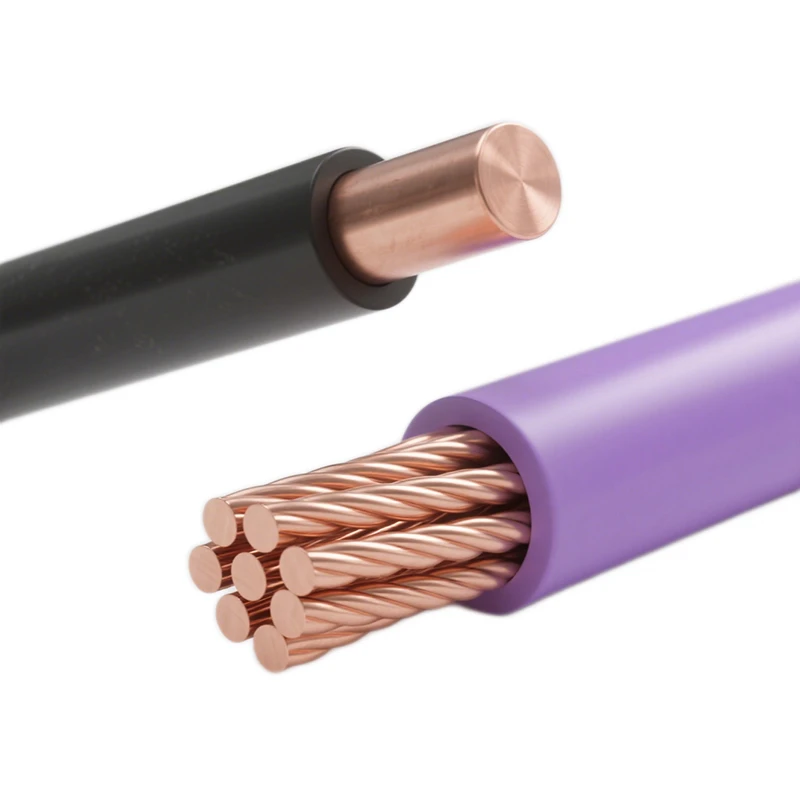

Onye na-eduzi: waya ọla kọpa na-enweghị eriri ma ọ bụ waya ọla kọpa nwere tin

Ihe mkpuchi: XLPE

Wiring ime n'ime ụgbọ ala

Ngwa

N'ime ụgbọ ala ahụ

A na-eji ya jikọọ ngwaọrụ dị ka ogwe ngwá ọrụ na n'ime - sistemu ntụrụndụ ụgbọ ala, na-enye ahụmịhe na-arụ ọrụ nke ọma maka ndị ọkwọ ụgbọ ala na ndị njem.

Na ụlọ ọrụ mmepụta ihe

The ike ọkọnọ akara maka ulo oru robot ogwe aka nwere ike iguzogide ugboro ekwe ekwe na esemokwu, na-ejigide na-aga n'ihu na-arụ ọrụ nke akụrụngwa.

Na ndapụta na elu kwụsie ike chọrọ

FLX-A nwekwara ike izute wiring chọrọ n'etiti ụlọ akụrụngwa, na-atọgbọ ntọala ahịrị siri ike maka mmepụta akpaaka ụlọ ọrụ.

Nhazi

product-553-144

Nkọwapụta ngwaahịa

Onye nduzi			Mkpuchi			Oke. DC Nguzogide na 20 degrees
Nọmba. mpaghara	Nọmba/ Dayameta nke wires	Dia.	Nọmba. ọkpụrụkpụ	Min. ọkpụrụkpụ	Oke. Dia.	Oke. DC Nguzogide na 20 degrees
Nọmba. mpaghara	Nọmba/ Dayameta nke wires	Dia.	Nọmba. ọkpụrụkpụ	Min. ọkpụrụkpụ	Oke. Dia.	AS	TS
mm2	Mba/mm	mm	mm	mm	mm	Ω/km	Ω/km
0.5	19/0.19	0.95	0.60	0.48	2.30	37.1	38.2
0.75	19/0.23	1.15	0.60	0.48	2.50	24.7	25.4
1	19/0.26	1.30	0.60	0.48	2.70	18.5	19.1
1.25	19/0.29	1.45	0.60	0.48	2.95	14.9	15.9
1.5	19/0.32	1.60	0.60	0.48	3.00	12.7	13.0
2	19/0.37	1.85	0.60	0.48	3.30	9.42	9.69
2.5	19/0.41	2.05	0.70	0.56	3.60	7.60	7.82
3	19/0.45	2.25	0.70	0.56	4.10	6.15	6.36
4	19/0.52	2.60	0.80	0.64	4.40	4.71	4.85
